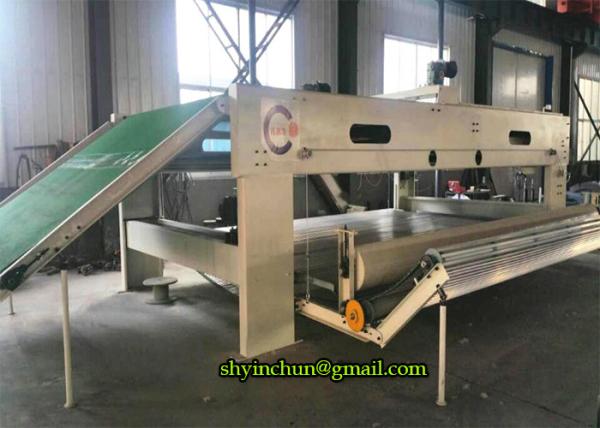

WE ARE A PROFESSIONAL NON-WOVEN LAPPER MACHINE SUPPLIER.

Usage:

Increase The Thickness And Width And Density Of Fiber Web, Change The Distribution Orientation And Improve Its Tension Ration Crosswise And Lengthways.

Technical Parameters:

Input Lattice Width: 1800-2800mm

Output Lattice Width: 2000-8000mm

Production Speed: 1-12m/Min

Input Lattice Speed: 0-40m/Min

Web GSM To Lap: 80-1000g/㎡

Output Speed: 0.4-8m/Min

Motor For Inclined Lattice: 1.5kw

Motor For Reciprocating Lattice: 2.2kw

Motor For Base Lattice: 1.5kw

Structure Features:

1. The Machine Is Of Heavy Structure With Super-Grade Steel Sheets At Two Sides And Profiled Steel Bar In The Middle As Support;

2. The Lapping Process Is Accurately Controlled By Frequency System;

3. Base Lattice Is Made Of Plastic, And Others Are Wooden-Make;

4. To Reduce Grease Spill And Noise, The Transmission Chain Is Placed And Running In Oil Channel;
